Product Overview

Digital Wireless Voice and Data Communications System

* TDMA - Time Division Multiple Access
* Full Duplex Voice - 32 kbps ADPCM for Toll Quality Voice
* Full Duplex Data
* 5 mSec Audio Frames
* Full Remote Sidetone with 10 mSec Delay
* Direct Sequence Spread Spectrum using QFAST
* Available at 915 MHz and 2.4 GHz.
* High Multipath Delay Spread Immunity

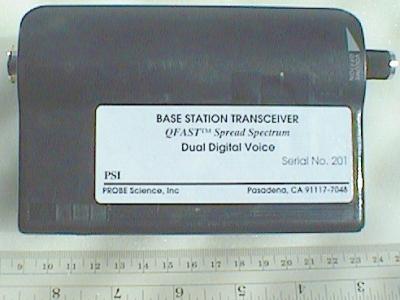

Base Station Transceiver

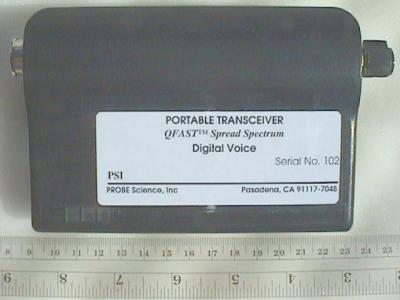

Portable Transceiver

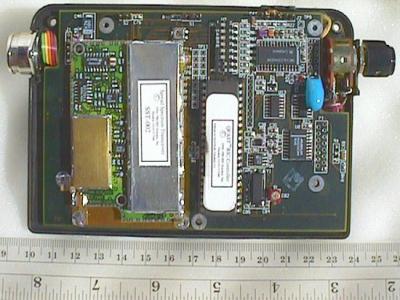

Portable Transceiver (Internal)

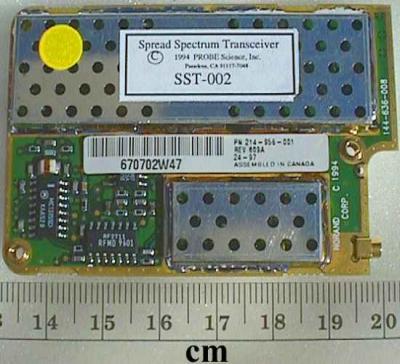

SST-002 915 MHz Spread Spectrum
IQ Transceiver Board (Front) Data Sheet

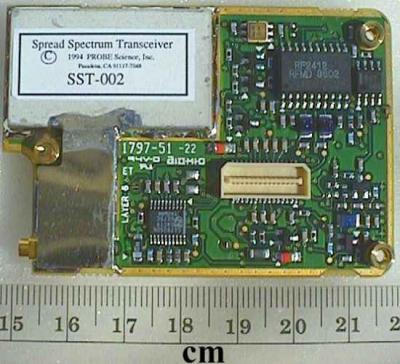

SST-002 915 MHz Spread Spectrum
IQ Transceiver Board (Back)



  • Implements PSI's

    •            QFAST™ Spread Spectrum Modem Technique.
  • Directly Interfaces to Transceiver I/Q ports.
  • Provides all drivers and registers to interface with

    •            SST-00X Series Transceiver.
  • Minimal External Support circuitry.
  • On Chip Reference Oscillator.
  • Power Down Provisions with Sleep Timer Output.
  • All Clock Generation and Recovery is performed on chip

    •            (Half Duplex Synchronous Modem).
  • Selectable Modes permit a variety of

    •            data rates and chip-to-bit ratio options.
  • Programmable PN generator variables.
  • Separate, Programmable Whitener Technique.
  • Low Power CMOS.
    		•

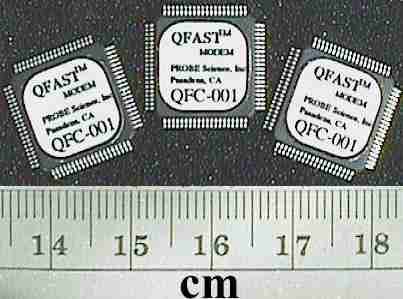

     QFASTTM QFC-001 Data Sheet
    		 Spread Spectrum Modem ICs
